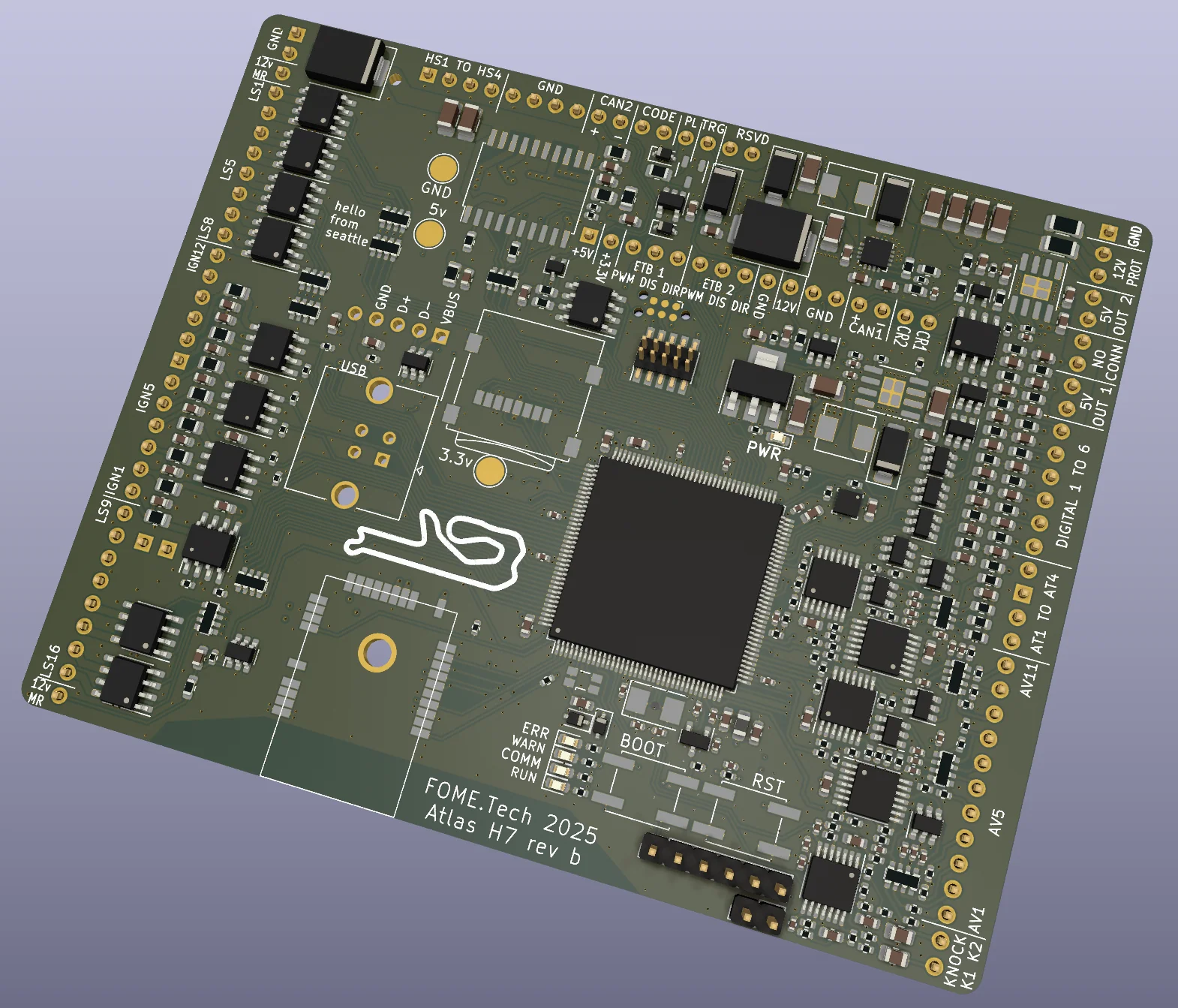

ECU brain module for the open source FOME ECU firmware. Atlas Render

System​

  • 480 MHz + 1MB RAM high performance CPU
  • Lots of room for large user Lua scripts!
  • Integrated (optional) WiFi connectivity
  • SD card for self-contained data logging (accessible over USB)
  • 2x CAN up to 1mbit/s (hardware supports CAN FD, no software support yet)

Inputs​

  • 11 Analog voltage inputs
  • 4 Analog temperature sensor inputs with internal pull-up resistor
  • 8 Digital inputs with integrated pull-up
  • 2 Knock sensing inputs
  • Onboard barometric pressure + temperature sensor

Outputs​

  • 12 Low side outputs (injectors, solenoids, relays, etc)
  • 12 5v push-pull ignition outputs (directly drive smart coils or IGBT for dumb coils)
  • 4 12v High side outputs
  • Logic-level outputs for 2x electronic throttle (ETB/DBW), driver chips on ECU base board
  • 4 Logic-level outputs for extra output drivers on the ECU base board

Where to Buy​
